Chip Introduction

ARM cortex-M0 core @16MHz
64KB FLASH + 16KB SRAM
Support maximum 60mA high voltage constant current source RGB LED driver, with 100uA step current size
3* 16 bit PWM
Integrated internal LDO
LED PN junction voltage detect circuit
Hardware over-voltage and over-temperature protection
2* LIN V2.2 controller and transceiver
LIN auto addressing and LIN address extension
in VW group approval list,J2602 passed
6* General Purpose I/O
Internal temperature sensor
10-bit SAR ADC

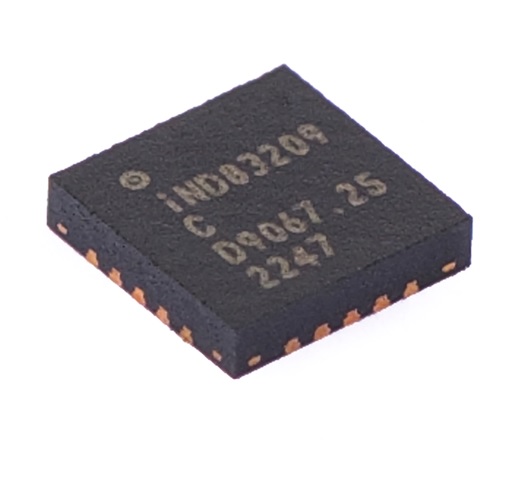

QFN 4×4 – 20pins,0.5mm pitch, ground Pad package
AECQ-100
